5-Channel Guard Dog® Cable Protector 1.325" Lines, Orange Lid/Black Base - GD5X125-O/B

Only %1 left
Model No
GD5X125-O/B
As low as $281.00

5-Channel Guard Dog® Cable Protector 1.325" Lines, Orange Lid/Black Base - GD5X125-O/B

5-Channel Guard Dog® Cable Protector 1.325" Lines, Orange Lid/Black Base - GD5X125-O/B

As low as $281.00

Product Summary

  • Protects cables and hoses up to 1.325" outside dia.
  • Dog Bone® connectors to extend to any desired length
  • Reinforced hinged lid for easy cable placement
  • All-weather polyurethane construction
  • Patented 5-bar tread surface for maximum traction
  • Includes four through-holes for temporary mounting

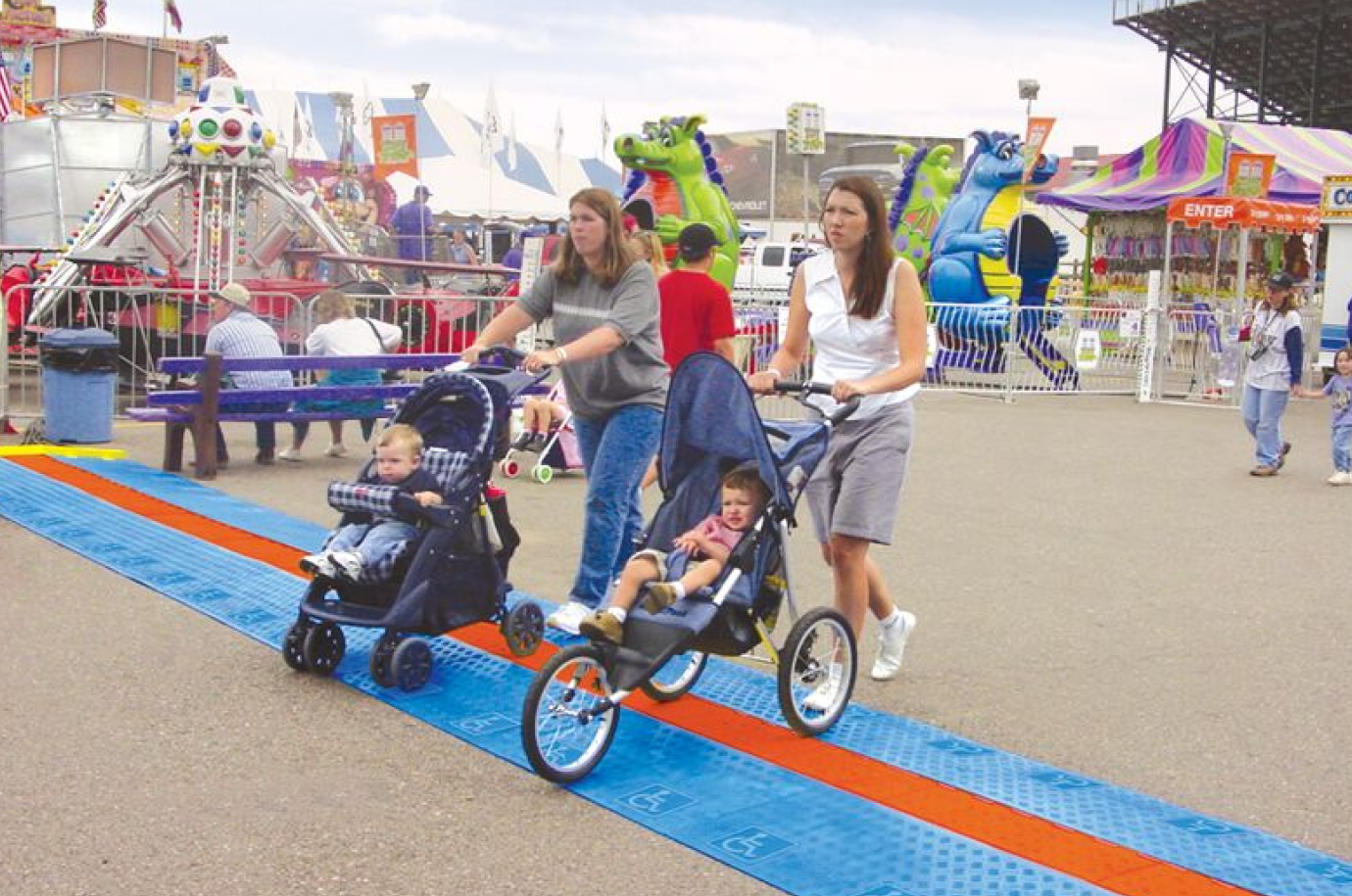

  • Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications
  • Custom cable protectors are available. Get a quote here.

WARNING: This product can expose you to chemicals including Lead, Carbon Black, Chromium, Nickel Compounds, and Sulfur Dioxide, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov..

Specifications Download Specification PDF

Model No GD5X125-O/B
Brand Checkers Safety™
Quantity Included 1

Description

The Guard Dog 5-Channel Cable Protector features a hinged lid, a modular, interlocking design and the capacity to protect cables and hoses with an outside diameter of up to 1.325". Its all-weather polyurethane construction gives it unmatched durability, and with the use of Dog Bone connectors, it can extend to any length. It also features a 5-bar tread surface, ensuring maximum traction for both vehicles and pedestrians.

Custom cable protectors can be made with different colors and embossed logos. Get a quote with your specific requirements.

Because of its durability, it's equally-suited for both commercial and industrial applications. Use it to keep electrical cables at an amusement park out of harm's way or protect critical hose lines from passing vehicles at an industrial site. Either way, its more than up to the task, and its four through-holes ensure it can easily be secured to the base surface for a longer-term installation.

Specifications

More Information
Model No GD5X125-O/B
Brand Checkers Safety™
Quantity Included 1
Load Capacity Per Axle 21000 lbs
Load Capacity Per Tire 10500
Length (Inches) 36
Width (Inches) 19.75
Height (Inches) 1.875
Max Cable Outside Diameter (Inches) 1.325
Number of Channels 5-Channels
Connector Type Dog Bone Connector
Channel Width 1.339

Guard Dog® Cable Protectors

Versatile, durable general-purpose cable protectors that are built to last

Checkers Guard Dog® Cable Protectors are the ultimate solution for general-purpose cable management and site safety. Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications

Durable and cost-effective

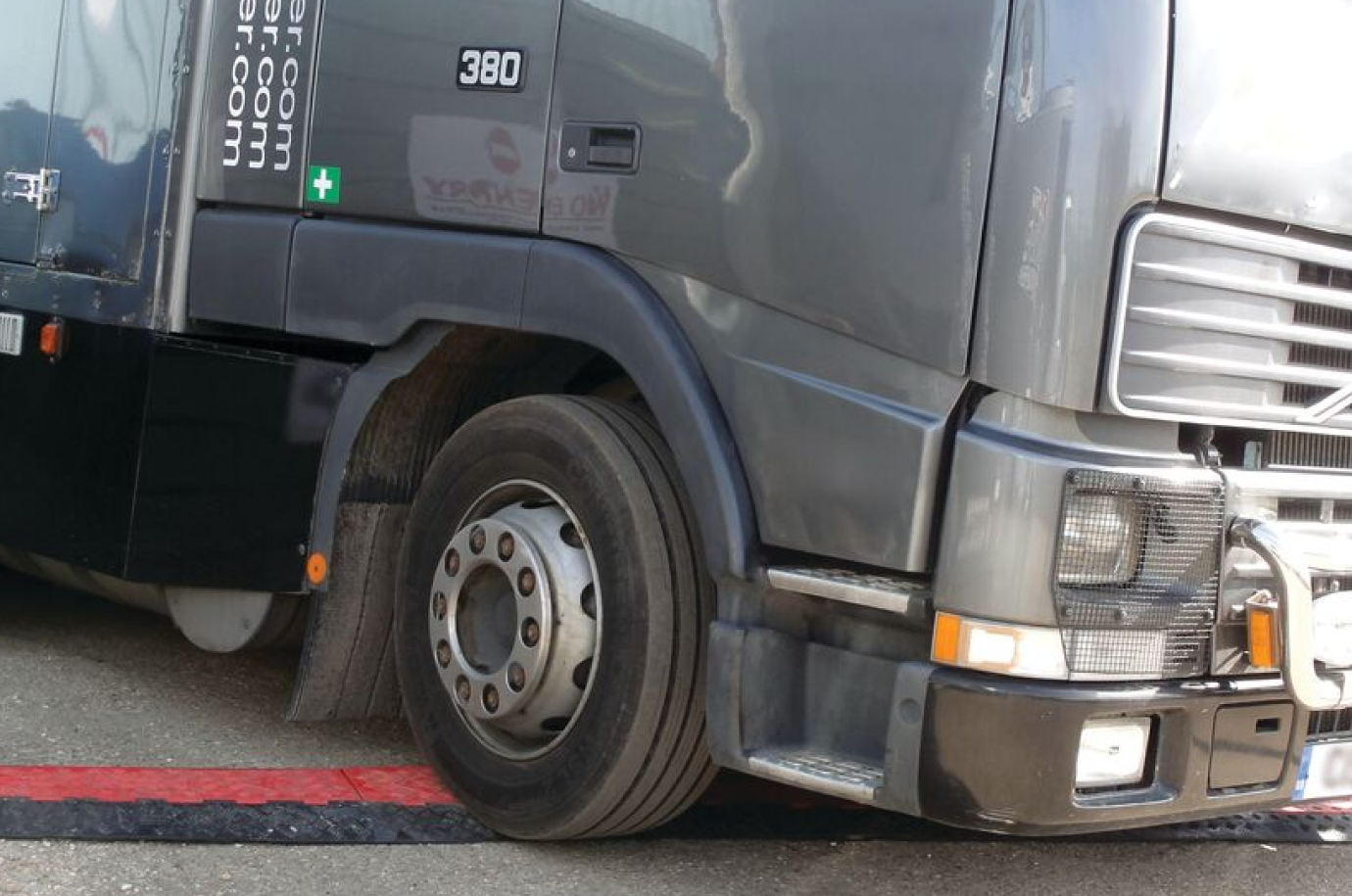

Made in the USA from polyurethane, Guard Dog cable protectors are built to withstand up to 28,400 lbs/axle and last years, reducing the need for frequent replacements and lowering long-term costs.

Protects valuable equipment

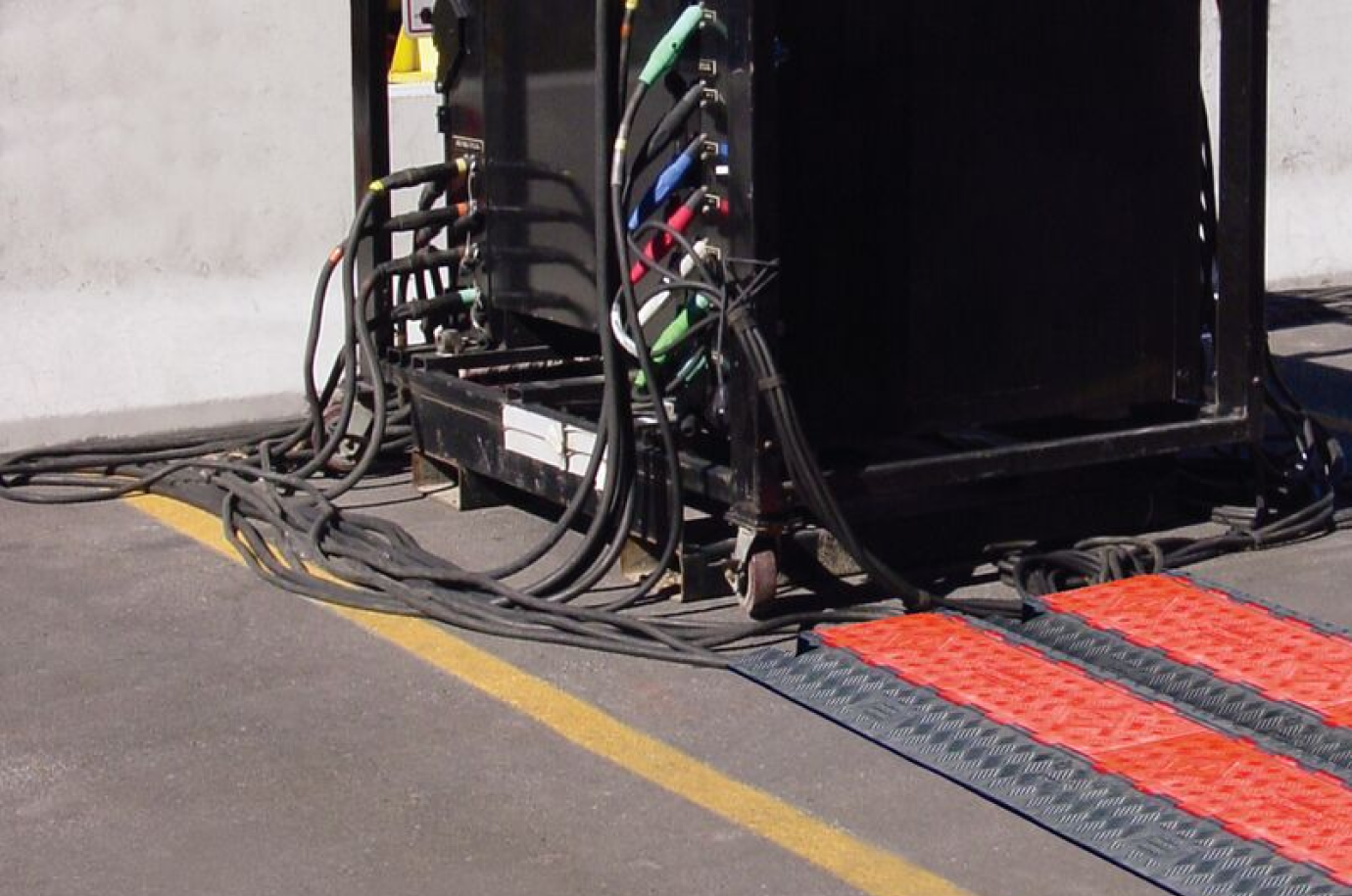

Exposed cables can cause trips, equipment damage, and costly operational shutdowns. Guard Dog protects wires, hoses, and cables under a rugged, hinged lid.

Fast and efficient setup

Patented tread surface provides superior traction and slip resistance, helping reduce injuries and liability on the job site. Up to 33% lighter than rubber without compromising strength and performance, they have built-in handles and an interlocking design that allow for quick deployment and easy transport..

Works with your existing fleet

Compatible with Dog Bone® connector models, allowing you to easily integrate, expand, or replace sections without interrupting your current layout.

High-visibility and customizable

Available in many high-visibility colors and can be customized with your company logo and preferred color for a branded appearance and to increased asset protection. Get a quote here.

Regulatory compliance

Meets state and federal guidelines such as OSHA and ADA guidelines for safe cable management in high-traffic areas.

Unlimited channels

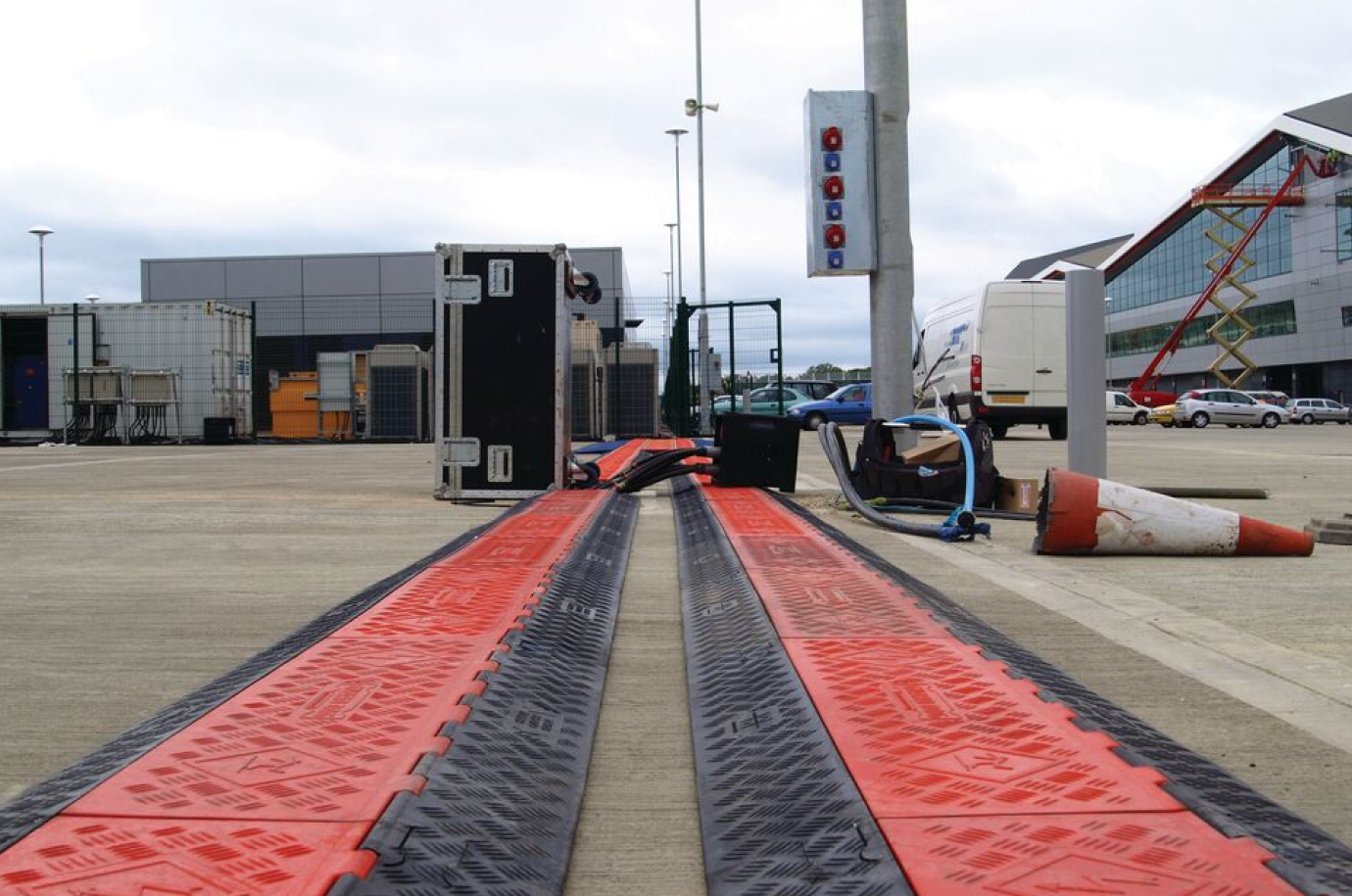

Cable bridges provide additional channels while creating a continuous, level, crossing surface for vehicle and pedestrian traffic. These modular accessories allow for the creation of any number of runs simultaneously by utilizing the space between multiple parallel cable protector runs.

Channel Size and
Maximum O.D.

5, 4, 3, 2, and 1-channel models available. Check your cable/hose outside diameter to ensure it will fit into your desired cable protector.

Height/Slope

Cable protector height varies Understand the clearance your vehicles require; low profile models, ADA compliant ramps and unique accessories are available if needed.

ADA/DDA
Compliant Accessories

Color Options/Ordering

Select cable protectors after multiple color options. Add the color code to the end of the product number.

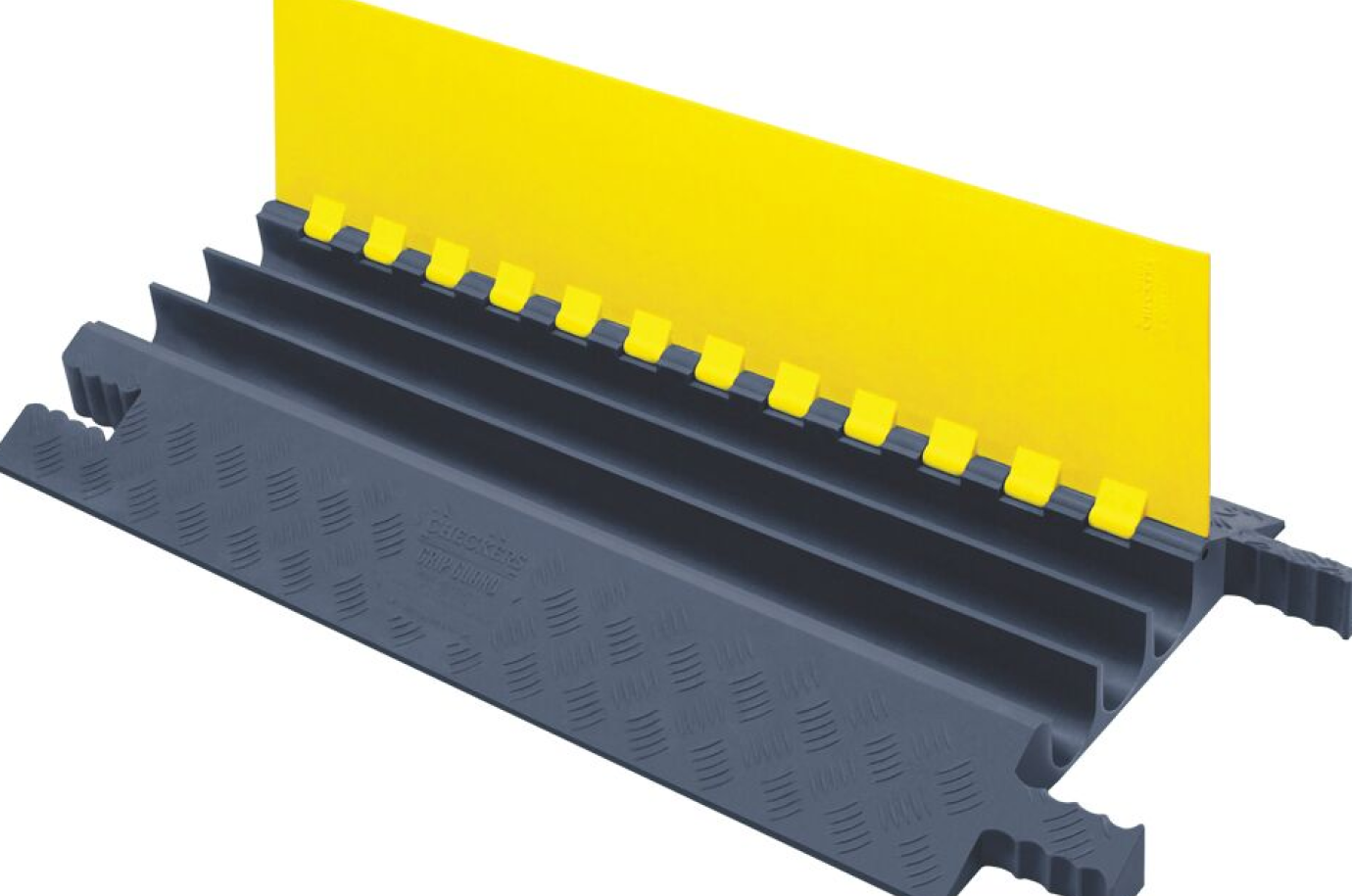

For example: CP5X125-Y/O is the complete model number for the cable protector pictured above

Load Capacity

Determine the required load capacity for your application. Know what type of vehicles and pedestrian traffic will be crossing over your cable protectors.

General Rule

As the number of channels on the protector increases, channel height increases (not applicable to low profile and drop-over models).

Connector Style

Make sure your product will be compatible with previous style cable protectors you may already own.

T-Shaped Dog Bone

Hourglass

Gripper


L-Shaped

Unit Color Color Code Icon
Yellow Y
Orange O
Black B
Blue BLU
Unit Color(s) Color Code (Lid/Base) Icon
Yellow/Orange Y/O
Yellow/Black Y/B
Yellow/Blue Y/BLU
Yellow/Gray Y/GRY
Orange/Yellow O/Y
Orange/Black O/B
Orange/Blue O/BLU
Black/Yellow B/Y
Black/Black B/B

Customize Your Cable Protectors

Customize your cable protectors to meet your needs! We can create a custom color, mold your company’s logo into the lid, or both. Get a quote today!

Need help choosing the right cable protector?

8 ADVANTAGES OF POLYURETHANE VS RUBBER

  • 1 Up to 33% lighter, easier to handle and less costly to ship

  • 2 Withstands repetitive impact and abuse over longer periods of time

  • 3 Superior load bearing capacity and broader hardness range

  • 4 UV Stable – use indoors or outside

  • 5 Higher abrasion, cut and tear resistance

  • 6 Better oil, chemical, fuel and lubricant resistance

  • 7 No chemical odor like some imported products

  • 8 Non conductive, making it ideal for power transmission projects
