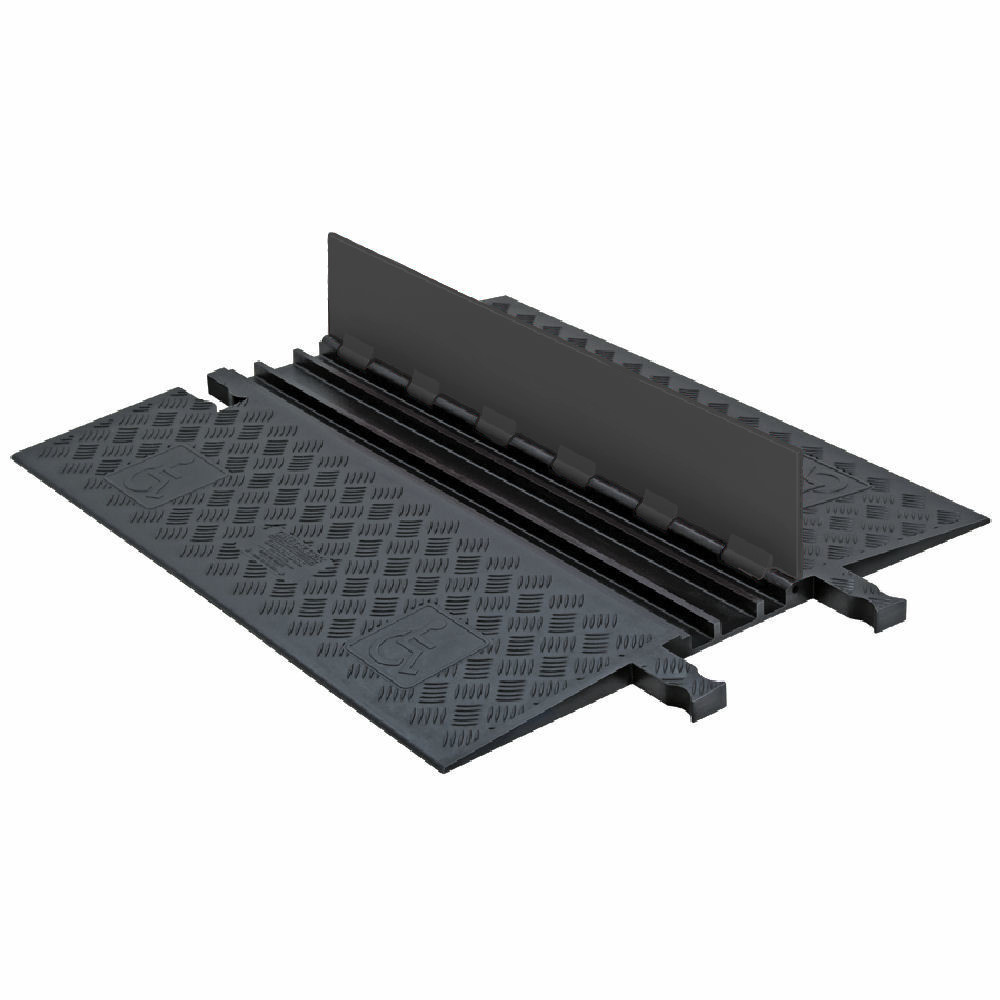

3-Channel Low-Profile Guard Dog® ADA Cable Protector for .75" Lines, Black Lid/Black Base - GD3X75-B/B

Model No
GD3X75-B/B
$312.00

Made in USA

Usually ships in 71 days Please contact customer service at
800-798-9250 for lead times.

Need a bulk or special order? Get a quote

Description:

Guard Dog® low-profile models are the most compact top-loading cable protectors on the market. These protectors provide a safe and easy crossing for vehicle and pedestrian traffic, while still maintaining a high load-bearing capacity for heavy equipment for cables up to 0.75" tall and 1.25" wide. The low-profile models are available with your choice of standard or ADA/DDA compliant ramps.

Product Summary:

  • Protects cables and hoses up to .75" outside dia.
  • Dog-Bone® Connectors to extend to any desired length
  • Reinforced hinged lid for easy cable placement
  • With built-in ADA/DDA Accessibility Ramps
  • Patented 5-bar tread surface for maximum traction
  • Modular interlocking design for easy setup

WARNING:��This product can expose you to chemicals including Carbon Black, Titanium Dioxide, Formaldehyde, and Benzyl Butyl Phthalate, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to��www.P65Warnings.ca.gov..

Specifications

More Information
Model No GD3X75-B/B
UPC 812958005804
Color Black Lid / Black Base
Quantity Included 1
Pallet Quantity 25
Load Capacity Per Axle 54000 lbs
Load Capacity Per Tire 27000
length (Inches) 39.75
Width (Inches) 30.38
Height (Inches) 1.25
Max Cable Outside Diameter (Inches) 0.75 in.
Number of Channels 3-Channels
Connector Type Dog Bone Connector
Channel Width 1.25
