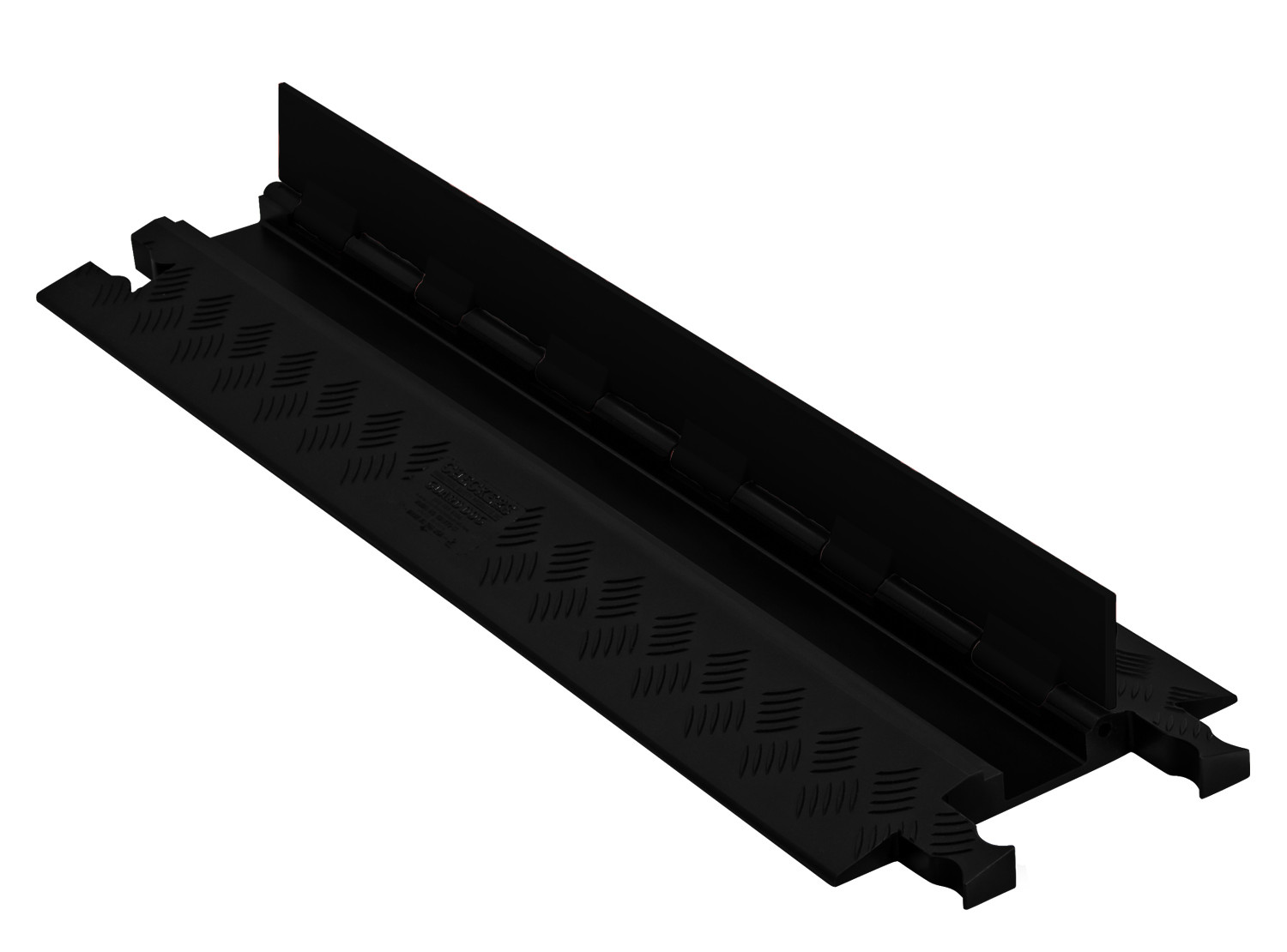

1-Channel Low-Profile Guard Dog® Cable Protector for .75" Lines, Black Lid/Black Base - GD1X75-ST-B/B

Model No
Warranty icon

Made in USA

Usually ships in 1-2 days Please contact customer service at
800-798-9250 for lead times.

Product Summary

  • Protects cables and hoses up to .75" outside dia.
  • Dog-Bone® Connectors to extend to any desired length
  • Reinforced hinged lid for easy cable placement
  • With standard ramps
  • Patented 5-bar tread surface for maximum traction
  • Modular interlocking design for easy setup
  • Custom cable protectors are available. Get a quote here.

WARNING: This product can expose you to chemicals including Carbon Black, Titanium Dioxide, Formaldehyde, and Benzyl Butyl Phthalate, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.


Guard Dog® love-profile cable protector models are the most compact top-loading cable protectors on the market, fitting cables up to 0.75" tall and 2.25" wide. These protectors provide a safe and easy crossing for vehicle and pedestrian traffic while still maintaining a high load-bearing capacity for heavy equipment. The low-profile models are available with your choice of standard or ADA/DDA compliant ramps.

Custom cable protectors can be made with different colors and embossed logos. Get a quote with your specific requirements.


More Information
Model No GD1X75-ST-B/B
UPC 812958005736
Color Black Lid / Black Base
Quantity Included 1
Pallet Quantity 72
Load Capacity Per Axle 26000 lbs
Load Capacity Per Tire 13000
Length (Inches) 38.5
Width (Inches) 11
Height (Inches) 1.25
Max Cable Outside Diameter (Inches) 0.75
Number of Channels 1-Channel
Connector Type Dog Bone Connector
Channel Width 2.25



Download Specification PDF
