| Model No | CL2X150-5GP-O |
|---|---|
| UPC | 812958000441 |
| Brand | Checkers Safety™ |

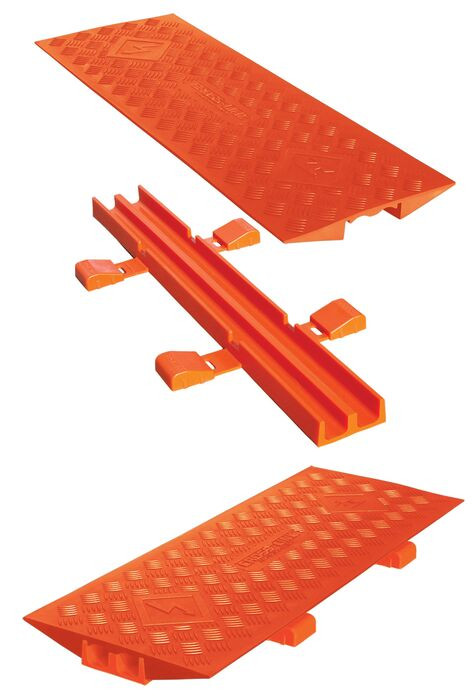

This patented, modular cable protector bridge does more than just add extra cable channels to your General Purpose Linebacker® Cable Protectors. It does so while providing both vehicular and foot traffic with a level crossing surface, complete with a textured surface to help reduce the risk of slips, trips and falls. That isn't its only claim to fame, either.
It's the first expandable cable protection system to accommodate an unlimited number of channels. That means that no matter how extensive you need to make your cable or hose run, Linebacker®'s got you covered. Intended for use with 5-Channel General Purpose Linebacker® Cable Protectors, these bridges are constructed of durable, all-weather polyurethane, and can protect cables and hoses with diameters of up to 1.5".
Custom cable protectors can be made with different colors and embossed logos. Get a quote with your specific requirements.
| Model No | CL2X150-5GP-O |
|---|---|
| UPC | 812958000441 |
| Brand | Checkers Safety™ |
| Color | Orange/Orange |
| Quantity Included | 1 |
| Load Capacity Per Axle | 21000 lbs |
| Load Capacity Per Tire | 10500 |
| Length (Inches) | 35.5 |
| Width (Inches) | 12 |
| Height (Inches) | 2 |
| Max Cable Outside Diameter (Inches) | 1.5 |
| Number of Channels | 2-Channels |
| Channel Width | 1.5 |
Our most robust cable protection solution, Linebacker®, is constructed of all-weather polyurethane, making it lightweight and easy to deploy while delivering maximum durability in the toughest environments and unbeatable protection for valuable cables and hoses.
Withstand loads up to 40,300 lb per axle, making them ideal for trucks, forklifts, and other heavy vehicles.
Easy cable placement without dismantling runs.
Extend to any length with patented T-connectors.
Provides superior traction and reduces slips.
UV-stabilized construction resists chemicals, oils, and extreme conditions.
Accessibility ramps and rails available for public venues, events, and pedestrian-friendly worksites.
Linebacker® offers versatile options for every job, including heavy-duty models for demanding applications like:
Channel Size and
Maximum O.D.
5, 4, 3, 2, and 1-channel models available. Check your cable/hose outside diameter to ensure it will fit into your desired cable protector.
Height/Slope
Cable protector height varies Understand the clearance your vehicles require; low profile models, ADA compliant ramps and unique accessories are available if needed.
ADA/DDA
Compliant Accessories
Select cable protectors after multiple color options. Add the color code to the end of the product number.
For example: CP5X125-Y/O is the complete model number for the cable protector pictured above
Load Capacity
Determine the required load capacity for your application. Know what type of vehicles and pedestrian traffic will be crossing over your cable protectors.
General Rule
As the number of channels on the protector increases, channel height increases (not applicable to low profile and drop-over models).
Connector Style
Make sure your product will be compatible with previous style cable protectors you may already own.
Customize your cable protectors to meet your needs! We can create a custom color, mold your company’s logo into the lid, or both!
Get a Quote Today!
