| Model No | BB4X-300GM-B/Y |
|---|---|
| UPC | 812542022040 |
| Brand | Checkers Safety™ |

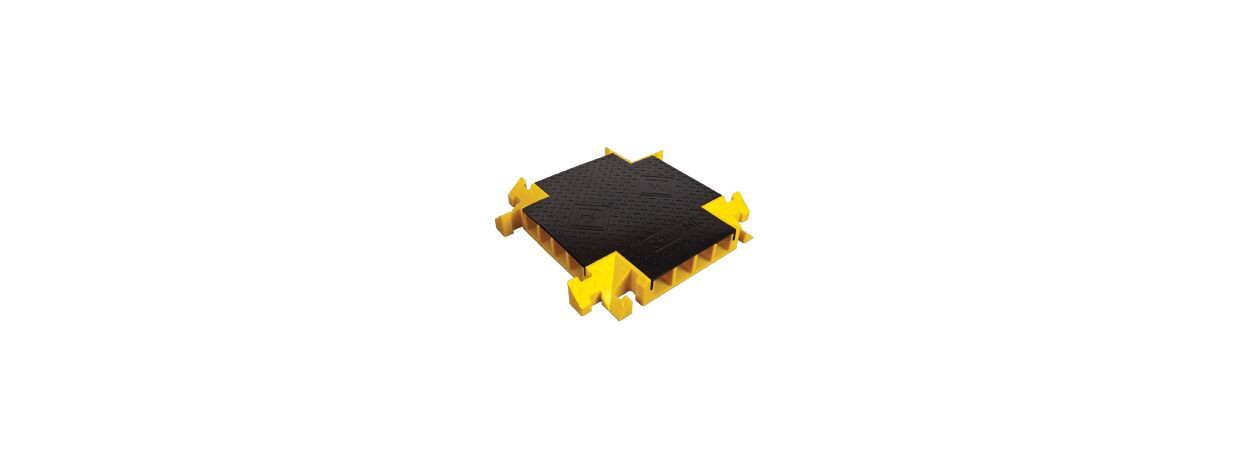

Use the highly visible black and yellow 4-Channel Bumble Bee® 4-Way Cross with T-Connector, model BB4X-300GM-B/Y, with the Bumble Bee 4-Channel Cable Protector model BB4-300GM-B/Y. This creates a 90 degree 4-way cross in high volume traffic areas while protecting valuable electrical cables and hose lines up to 3" high and 3" wide from damage. The modular interlocking design is moveable and reusable, ideal for use in automotive, appliances and other high-volume, limited access, automated manufacturing facilities.
At 24 inches wide, it takes up little floor space. X and Y intersection pieces can be configured to make turns of 45 and 90 degrees in cable runs. Designed for manufacturing budgets, it offers a lower cost and better flexibility than cable trays.
Custom cable protectors can be made with different colors and embossed logos. Get a quote with your specific requirements.
| Model No | BB4X-300GM-B/Y |
|---|---|
| UPC | 812542022040 |
| Brand | Checkers Safety™ |
| Color | Yellow Lid / Black Base |
| Load Capacity Per Axle | 20200 lbs |
| Load Capacity Per Tire | 10100 |
| Length (Inches) | 25.5 |
| Width (Inches) | 24 |
| Height (Inches) | 4 |
| Max Cable Outside Diameter (Inches) | 3 |
| Number of Channels | 4-Channels |
| Connector Type | T-Connector Connector |
| Channel Width | 3in |
Checkers Bumble Bee Cable Protectors provide a safer crossing in high volume traffic areas while protecting valuable electrical cables and hose lines from damage. Made from all-weather urethane construction, Bumble Bee cable protectors feature a diamond plate tread surface for maximum traction. Ideal for use in light entertainment and utility applications, it is available with T-connectors or Dog Bone connectors, making it easy to be incorporated to your existing fleet.
Made in the USA from polyurethane, Bumble Bee cable protectors are lightweight and built to withstand up to 12,000 lb./axle and last years, reducing the need for frequent replacements and lowering long-term costs.
Up to 33% lighter than rubber without compromising strength and performance, they have built-in handles and an interlocking design that allow for quick deployment and easy transport.
Exposed cables can cause trips, equipment damage, and costly operational shutdowns. Bumble Bee protects wires, hoses, and cables under a rugged, hinged lid.
Patented tread surface provides superior traction and slip resistance, helping reduce injuries and liability on the job site. Ideal for light industrial applications, entertainment venues, and general purpose applications with heavy foot traffic.
Available with T-connectors or Dog Bone connectors so it can be easily incorporated to your existing fleet.
Channel Size and
Maximum O.D.
5, 4, 3, 2, and 1-channel models available. Check your cable/hose outside diameter to ensure it will fit into your desired cable protector.
Height/Slope
Cable protector height varies Understand the clearance your vehicles require; low profile models, ADA compliant ramps and unique accessories are available if needed.
ADA/DDA
Compliant Accessories
Select cable protectors after multiple color options. Add the color code to the end of the product number.
For example: CP5X125-Y/O is the complete model number for the cable protector pictured above
Load Capacity
Determine the required load capacity for your application. Know what type of vehicles and pedestrian traffic will be crossing over your cable protectors.
General Rule
As the number of channels on the protector increases, channel height increases (not applicable to low profile and drop-over models).
Connector Style
Make sure your product will be compatible with previous style cable protectors you may already own.
Loss Prevention
Cost-effectiveness in the long run by avoiding the need for frequent replacements.
Brand Recognition
Displaying your company’s logo on cable protectors at events can create a sense of reliability
and familiarity among attendees and professionals.
Aesthetics and Visual Considerations
Important for preventing tripping hazards and creating a seamless environment at events like
parties, weddings, and trade shows.
