Diamondback® Hose Bridge Single Tunnel Package for 4.5" Lines - UHB4045

Model No
Warranty icon

Made in USA

Usually ships in 6 days Please contact customer service at
800-798-9250 for lead times.

Product Summary

  • Polyurethane Construction is Abrasion, Impact and Weather-Resistant with High Load-Bearing Capacity
  • Diamond-Plate Tread Surface Increases Traction
  • Yellow Caution Color for High Visibility
  • Modular Interlocking Design is Lightweight, Easy to Transport, Setup, Disassemble, and Store
  • Built-In Hand Holds Allow for Handling with Ease and Double as Attachment Points for Mounting Brackets
  • WARNING: Vehicles Crossing Bridge System Must Have Clearance of Greater Than Bridge Height
  • WARNING: Hose Bridges Are for Rubber Tired Vehicles Only (Not for Equipment with Metal Tracks)

WARNING: This product can expose you to chemicals including Carbon Black, Titanium Dioxide, Formaldehyde, and Benzyl Butyl Phthalate, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.


Diamondback® single tunnel systems provide protection for valuable cable and hose lines while ensuring a safe method of passage for vehicles. High-density, all-weather urethane construction protects from damage by physical pressure and reduces cable and hose maintenance and replacement costs. The single tunnel systems feature a high load-bearing capacity, modular, interlocking design, and diamond-plate tread surface for increased traction with hoses and cables up to 4.5" in diameter.


More Information
Model No UHB4045
UPC 812958003947
Quantity Included 1
Pallet Quantity 24
Load Capacity Per Axle 19300 lbs
Load Capacity Per Tire 9650
Length (Inches) 31
Width (Inches) 15.63
Height (Inches) 5.63
Max Cable Outside Diameter (Inches) 4.5
Number of Channels 1-Channel
Bridge Length (Inches) 44
Bridge Width (Inches) 16
Bridge Height (Inches) 5.5

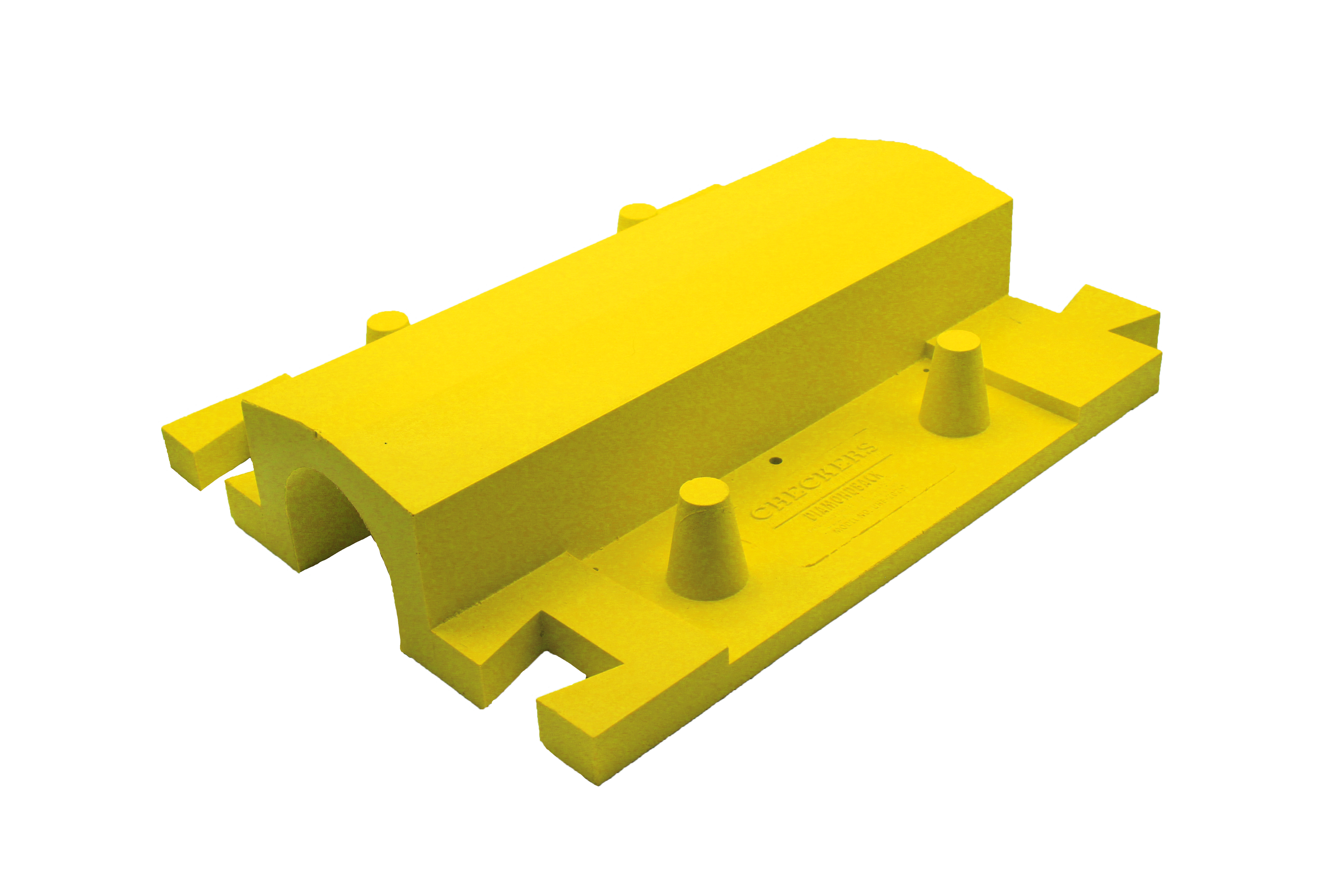

Tunnel Diameter 4.5
Tunnel Top Length (Inches) 7.75
Tunnel Base Length (Inches) 15.63

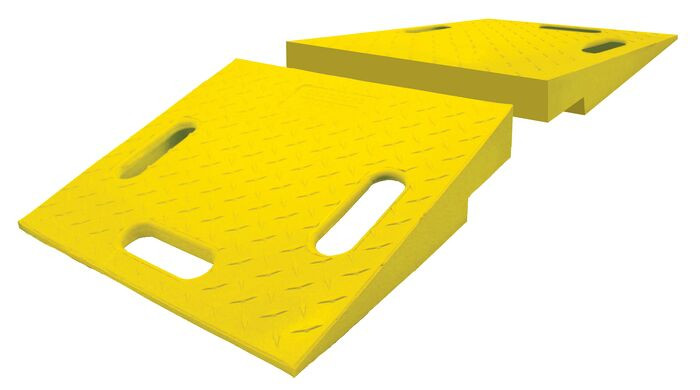

Ramp Top Length (Inches) 18.25
Ramp Base Length (Inches) 14.25
System Weight 50
